A RAG pipeline on a Delta lakehouse, and the bug that survived being fixed

What this is

A small end-to-end system: scrape a bounded set of pages, land them in object storage, refine them through bronze, silver and gold Delta tables on Spark, embed the result, and serve answers that cite the passages they came from — or decline.

I built the first version in July 2025. Coming back to it in 2026, the most useful thing about it was not that it worked; it was why it had stopped.

Step 0 — Why a 2025 compose file does not start in 2026

Three reasons, and the first is not a version problem.

bitnami/spark:3.5                  GONE
marquezproject/marquez:latest      pulls
chromadb/chroma:latest             pulls

bitnami/spark is gone. Broadcom moved the Bitnami catalog behind a paid tier during 2025. A bitnamilegacy namespace survives, but it publishes only sha256 digests — there is no 3.5, nothing you can write in a compose file and read six months later.

Nine images were pinned to :latest. Which means the stack that ran in July 2025 is not recoverable, and no assertion about it is checkable. That is the actual cost of :latest, and it is not a style preference.

Three JAR files, roughly 270 MB, had to be downloaded by hand — aws-java-sdk-bundle, hadoop-aws, hadoop-common — and they were in neither the repository nor my own working copy. The public repo failed on first run for everyone who cloned it, including me. They were also the AWS SDK v1 S3A stack, which Spark 4 has moved past regardless.

Step 1 — Spark and Delta, with nothing downloaded by hand

  spark-master:
    image: apache/spark:4.0.4-scala2.13-java17-python3-r-ubuntu
    command: /opt/spark/bin/spark-class org.apache.spark.deploy.master.Master
    volumes:
      - ./spark:/opt/spark-lab:ro
      - ./jobs:/opt/jobs:ro
      - ivy_cache:/tmp/ivy

The jars/ directory is gone entirely. Spark resolves S3A and Delta from Maven at submit time:

exec /opt/spark/bin/spark-submit \
  --master "${SPARK_MASTER:-spark://spark-master:7077}" \
  --conf spark.jars.ivy="${IVY_DIR:-/tmp/ivy}" \
  --packages "io.delta:delta-spark_2.13:${DELTA_VERSION},org.apache.hadoop:hadoop-aws:${HADOOP_AWS_VERSION}" \
  --conf spark.sql.extensions=io.delta.sql.DeltaSparkSessionExtension \
  --conf spark.sql.catalog.spark_catalog=org.apache.spark.sql.delta.catalog.DeltaCatalog \
  --conf spark.hadoop.fs.s3a.endpoint="${S3_ENDPOINT}" \
  --conf spark.hadoop.fs.s3a.path.style.access=true \
  "$@"

Two things in there are load-bearing and neither is obvious.

java.io.FileNotFoundException: /nonexistent/.ivy2.5.2/cache/resolved-org.apache.spark-…xml

Delta and Spark are pinned to each other, minor by minor. Same Spark, three Delta versions:

All three resolve from Maven without a murmur. Maven has no idea which Spark you are running, so a wrong pairing is a class-load failure on the first DataFrame call, several seconds after everything looked fine. “Use the latest” is the wrong instinct here. Matching is.

Verify. spark: 4.0.4, rows_written: 50000, and a _delta_log/ prefix in the bucket.

Step 2 — Scraping is not a Spark job

def allowed(url: str) -> bool:
    """Ask robots.txt per host, not once at the start."""
    parts = urllib.parse.urlsplit(url)
    rp = robotparser.RobotFileParser()
    rp.set_url(f"{parts.scheme}://{parts.netloc}/robots.txt")
    try:
        rp.read()
    except Exception:
        return False   # unreadable robots.txt is a no, not a yes
    return rp.can_fetch(UA, url)

Scraping is IO-bound and rate-limited by politeness. Putting it on the cluster buys nothing and makes the robots check harder to follow. It runs in a small Python container and lands append-only JSONL.

Chunking is by <h2>/<h3> section rather than by page or by character count. A whole reference page is far too much context for one embedding; a fixed character window cuts sentences in half. A section is roughly one idea, which is the unit a question is usually about.

Verify. landed s3://lakehouse/raw/scrape/…jsonl sections=187 skipped=0 bytes=882663.

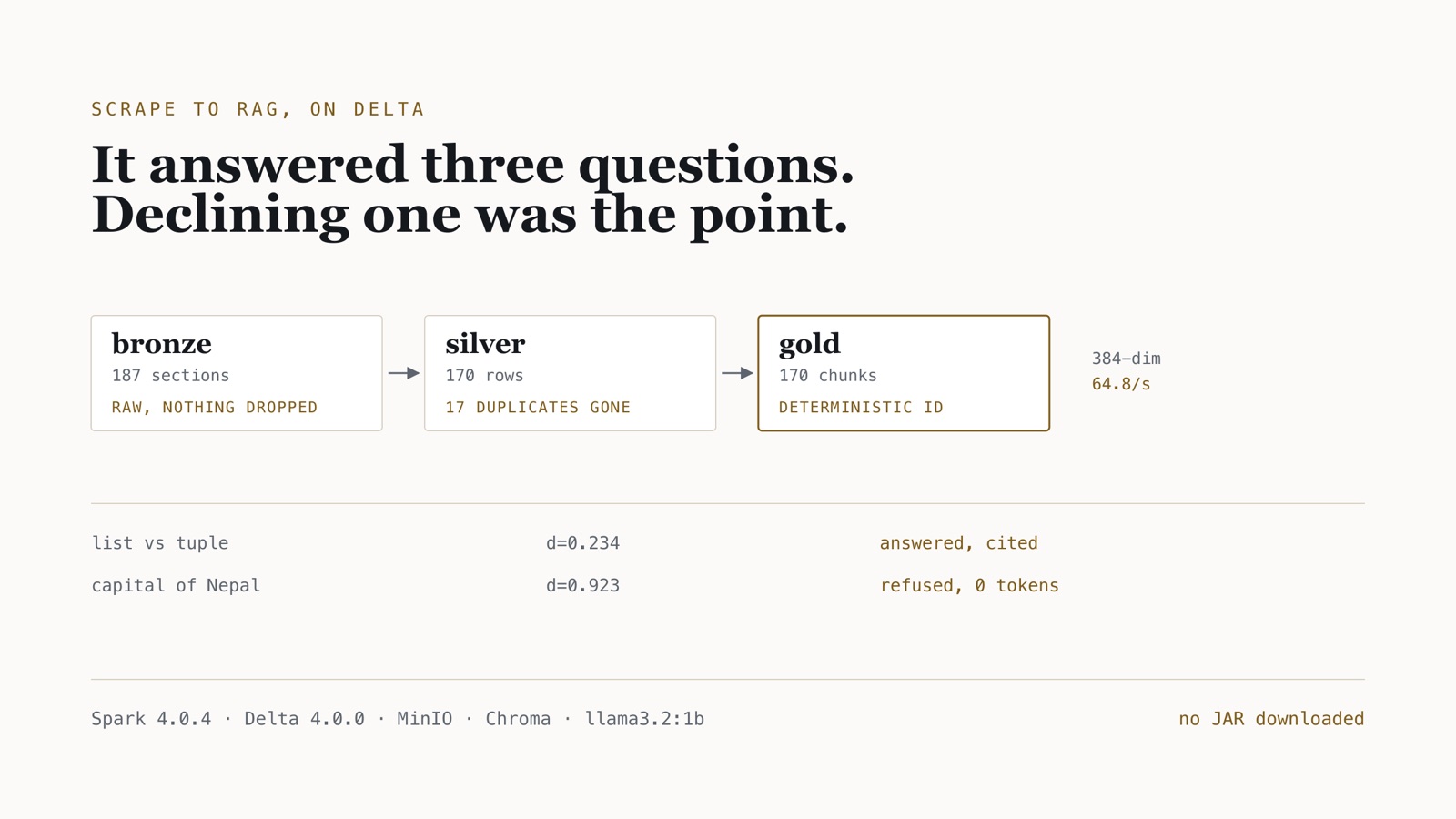

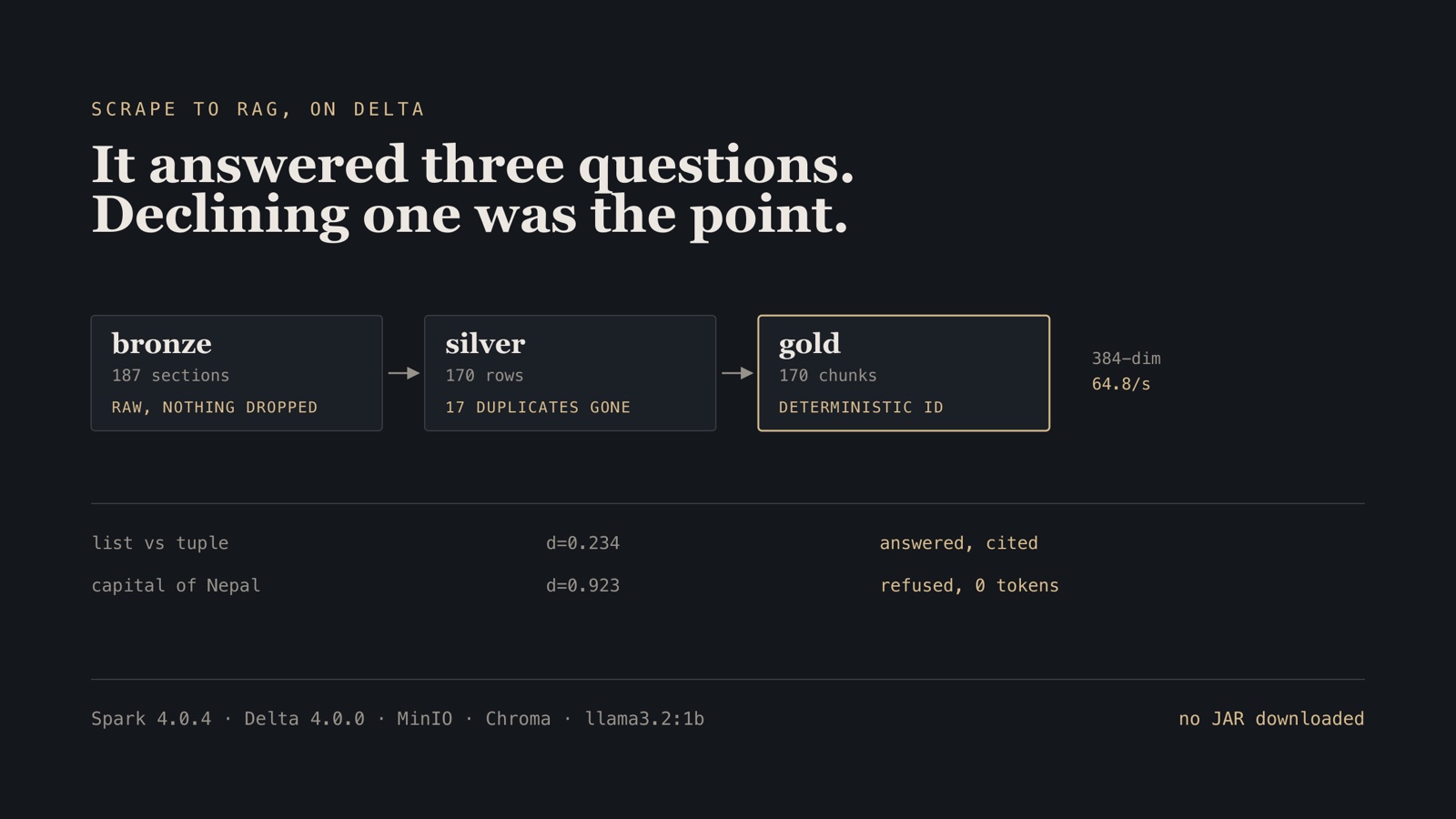

Step 3 — Bronze, silver, gold, and what each layer owes you

# bronze: pure function of the raw prefix, overwritten each run
raw = spark.read.json(f"{BUCKET}/raw/scrape/")
bronze = raw.withColumn("ingested_at", F.current_timestamp()) \
            .withColumn("text_len", F.length("text"))
bronze.write.format("delta").mode("overwrite").save(f"{BUCKET}/bronze/sections")

Step 4 — Embeddings, and why the id is a hash

chunk_id is sha256(url :: section) truncated to 16 characters. That makes it stable across runs, so re-running the pipeline updates a vector instead of inserting a second copy beside it.

read      170 chunks from delta in 0.21s
embed     170 chunks in 2.62s (64.8/s, dim=384, model load 7.42s)
upsert    170 vectors in 0.25s

Reading Delta here uses the Rust deltalake reader, not PySpark. Embedding 170 rows does not need a cluster, and a 400 MB JVM image to read a small table is the kind of default that makes a stack feel heavier than its problem.

Step 5 — An answer that can be checked, or no answer

kept = [(d, m, s) for d, m, s in zip(docs, metas, dists) if s <= MAX_DISTANCE]
if not kept:
    return {"answer": "I don't know.", "grounded": False,
            "nearest_distance": round(min(dists), 4), "sources": []}

Three questions against a corpus of Python standard-library documentation:

The third is the one worth building for. The response carried a retrieve timing and no generate timing at all — the model was never called. Nothing in the corpus was close enough, so there was nothing to be fluent about.

That ordering matters. A retriever that hands four irrelevant passages to a model and asks it to be careful is asking the wrong component to hold the line. A refusal that costs no inference is the cheapest safety property in the system, and it is a threshold rather than a prompt.

Verify. An out-of-corpus question returns grounded: false, a nearest_distance above your threshold, and no generate timing.

Step 6 — The bug that survived being fixed

This is the part I would keep if I could keep only one.

Every section title came back with a stray Â welded to the pilcrow — requests had guessed the charset from headers that did not commit to one. The fix is one line: hand BeautifulSoup r.content instead of r.text and let it sniff the meta charset.

That fixed the scrape. It fixed nothing downstream.

chunk_id is a hash of (url, section). Changing the title changed the identity of every chunk — and every store in the chain is upsert-only:

Then the retriever answered a question with both copies:

src: 'Tuples'   dist 0.2338
src: 'TuplesÂ'  dist 0.2350

Two near-identical passages competing for the same context window, from a bug that had already been fixed at the source. From the outside this reads as a model problem — the answer is repetitive, the citations are redundant. It is a pipeline problem, three layers upstream.

The lesson is not “handle encodings”. It is that a natural key derived from scraped content is not stable, and an upsert-only layer has no way to forget. A merge that is meant to converge on its source needs a delete clause for rows the source no longer produces, or the layer needs a periodic full rebuild. I added the rebuild:

if os.environ.get("REBUILD", "").lower() in ("1", "true", "yes"):
    client.delete_collection("sections")

Measured

The generate figure is honest and unflattering: a 1B model on CPU. That is deliberate — the subject here is the pipeline around the model, and a larger model would make every run slower while changing none of the properties being tested.

Failure modes

Clean up and operating consequence

docker compose --profile tools down -v

Two rules came out of this.

Pin everything, and know your exit from every vendor image. The stack did not break because of a bad upgrade. It broke because a company changed its distribution model and :latest meant there was nothing to fall back to.

Ask which of your stores can forget. Every layer here could accept new data and none could drop stale data, which is fine until a key changes — and keys derived from source content change more often than anyone plans for. The question to ask of a pipeline is not “does a re-run add the right rows”, it is “does a re-run remove the wrong ones”. Bronze could. Nothing else could.

Lineage is the obvious next piece: the original had Marquez wired in, and an OpenLineage graph would have shown the orphaned rows propagating across three stores in one picture rather than three separate counts.
