A free private remote desktop with RustDesk

Why bother

Want a TeamViewer-style remote desktop without a subscription, and without handing connection metadata to someone else’s relay? RustDesk is fully open source. The clients are free. The public servers will connect you — and then drop the session at about thirty seconds unless you pay.

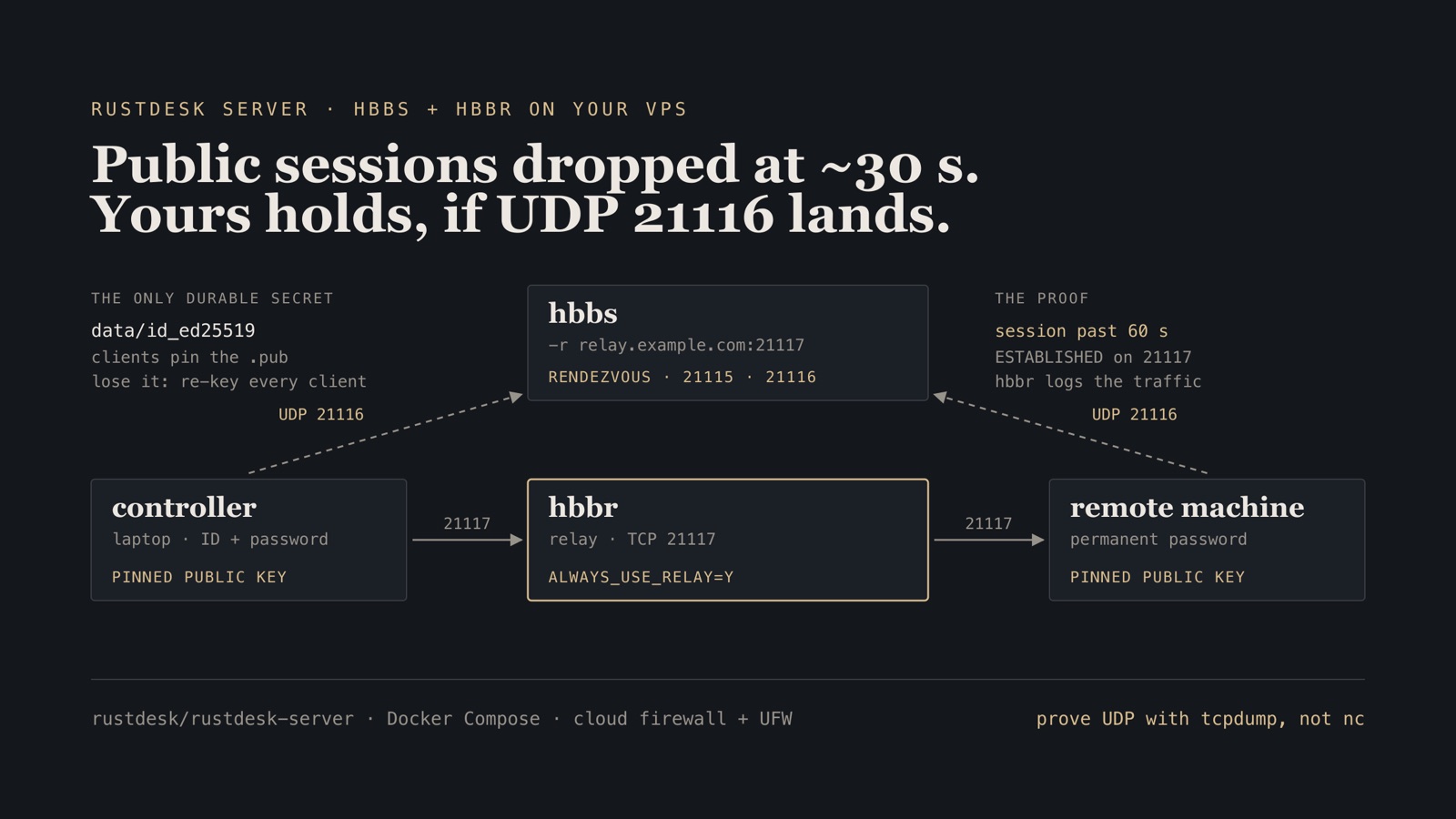

You can skip that tax. Run the official hbbs (rendezvous) and hbbr (relay) containers on any small Linux VPS, point relay.example.com at it, and paste one public key into each client. Idle cost is tens of megabytes of RAM. Bandwidth is whatever your VPS already has.

Two things usually waste the first hour, so we will treat them as part of the setup rather than surprises:

1. UDP 21116. People open TCP 21116 and forget UDP. The app sits on “Connecting…” while Docker looks healthy.
2. Silent P2P. RustDesk prefers a direct path. On the same LAN a session can succeed without ever touching hbbr. You have not tested the relay until ALWAYS_USE_RELAY=Y and you see traffic on 21117.

Substitute your domain below. Do not publish the private key.

Step 1 — DNS, firewall, and the compose file

Create a directory and an A record for the relay hostname, pointing at the VPS. IPv6 is optional; if you add AAAA, keep using the hostname as the client setting so you are not locked to one stack.

mkdir -p rustdesk-server/data
cd rustdesk-server

Open the ports. UDP 21116 is the one people skip. 21118/21119 are only for the web client; leave them closed if you are not using it.

sudo ufw allow 21115/tcp
sudo ufw allow 21116/tcp
sudo ufw allow 21116/udp
sudo ufw allow 21117/tcp
sudo ufw reload
sudo ss -lntu | grep -E '21115|21116|21117' || true

Write .env and the compose file. RUSTDESK_PUBLIC_HOST must be the name you put in DNS. hbbs -r tells clients which host:port is the relay.

cat > .env <<'EOF'
RUSTDESK_PUBLIC_HOST=relay.example.com
RUSTDESK_ALWAYS_USE_RELAY=Y
EOF

services:
  hbbs:
    image: rustdesk/rustdesk-server:latest
    container_name: rustdesk_hbbs
    restart: unless-stopped
    environment:
      - ALWAYS_USE_RELAY=${RUSTDESK_ALWAYS_USE_RELAY:-Y}
    command: hbbs -r ${RUSTDESK_PUBLIC_HOST}:21117
    ports:
      - "21115:21115"
      - "21116:21116"
      - "21116:21116/udp"
    volumes:
      - ./data:/root
    depends_on:
      - hbbr
    networks: [rustdesk_net]
    mem_limit: 256m
    cpus: "0.25"

  hbbr:
    image: rustdesk/rustdesk-server:latest
    container_name: rustdesk_hbbr
    restart: unless-stopped
    command: hbbr
    ports:
      - "21117:21117"
    volumes:
      - ./data:/root
    networks: [rustdesk_net]
    mem_limit: 256m
    cpus: "0.50"

networks:
  rustdesk_net:
    driver: bridge

Explicit port maps beat host networking here. The relay then sits beside an existing app stack without claiming the host network namespace. Idle cost is small: tens of megabytes of RAM and almost no CPU until a session is relayed.

docker compose up -d
docker compose ps
docker compose logs hbbs --tail=30
docker compose logs hbbr --tail=20

Look for ALWAYS_USE_RELAY=Y in the hbbs log and a listen line on 21117 in hbbr. Treat a healthcheck of unhealthy as untrusted if the image has no shell for CMD-SHELL. Ports listening plus an external nc are the real signals.

Verify. From a machine that is not the VPS, all four of these should report open. If TCP works and UDP fails, the firewall or provider security group is incomplete.

nc -vz relay.example.com 21115
nc -vz relay.example.com 21116
nc -vz relay.example.com 21117
nc -vzu relay.example.com 21116

Step 2 — Pin the key, then configure the clients

The first start writes an Ed25519 pair into ./data. Clients pin the public key. Without that pin they will not talk to your server, which is the whole anti-MITM design.

cat ./data/id_ed25519.pub
# example only: 5fGu2T8aQrXkPnMwZ...kP9vNw=

Treat ./data/id_ed25519 as a secret. Back it up off the VPS. If that file is lost, the next start mints a new key and every existing client refuses to connect until you paste the new public key.

On each RustDesk client:

1. Install the app (brew install --cask rustdesk on a Mac).
2. Settings → Network → unlock network settings.
3. ID Server = relay.example.com.
4. Relay Server = leave empty. hbbs -r advertises the relay; the official docs discourage setting this on every client.
5. API Server = leave empty (Pro).
6. Key = the exact contents of id_ed25519.pub, no quotes, no trailing space.
7. Apply, then restart the app.

The status line should read Ready (relay.example.com), not the public-server message.

On the machine you want to control unattended: Settings → Security → enable a permanent password (16+ random characters, password manager), optionally 2FA, and grant the OS permissions RustDesk asks for (Accessibility and Screen Recording on macOS). That first permission grant needs a local screen. It cannot be done over SSH.

Verify. The controlled client shows Ready (relay.example.com) and docker compose logs hbbs --tail=50 shows the client ID registering, with no permission denied or key errors.

Step 3 — Connect and prove you beat the public cutoff

From the controlling laptop, enter the nine-digit ID of the remote machine, use the permanent password, and wait for the desktop. Then do the only check that matters for this post: leave the session up for more than sixty seconds while moving the mouse.

While it is connected:

docker compose logs -f hbbr
sudo ss -tunap | grep 21117

With ALWAYS_USE_RELAY=Y you should see hbbr activity and established sockets on 21117. If the session is up and hbbr is silent, you are on P2P and have not tested the relay.

That is also why I default to relay-on. It costs server bandwidth. It makes the failure mode visible. Set RUSTDESK_ALWAYS_USE_RELAY=N later if you want hole-punched P2P and only fall back to hbbr.

Verify. The session is still connected at 60 seconds, hbbr logged traffic, and ss shows ESTABLISHED on 21117. That is the proof you are not on the public 30-second relay.

Failure modes

Clean up and operating consequence

Quarterly:

docker compose pull
docker compose up -d

Backup recipe — the keys are under a kilobyte:

tar czf rustdesk-keys-$(date +%F).tgz -C rustdesk-server data/id_ed25519 data/id_ed25519.pub

To walk away from the private server, docker compose down and clear ID Server / Key on each client. They return to the public infrastructure in about thirty seconds per device.

If you can keep a session up for a minute through hbbr, you have a free private remote desktop. Add more devices the same way: same hostname, same public key, no server change.

Next, the other thing people usually want on the same VPS: a free VPN with WireGuard.
